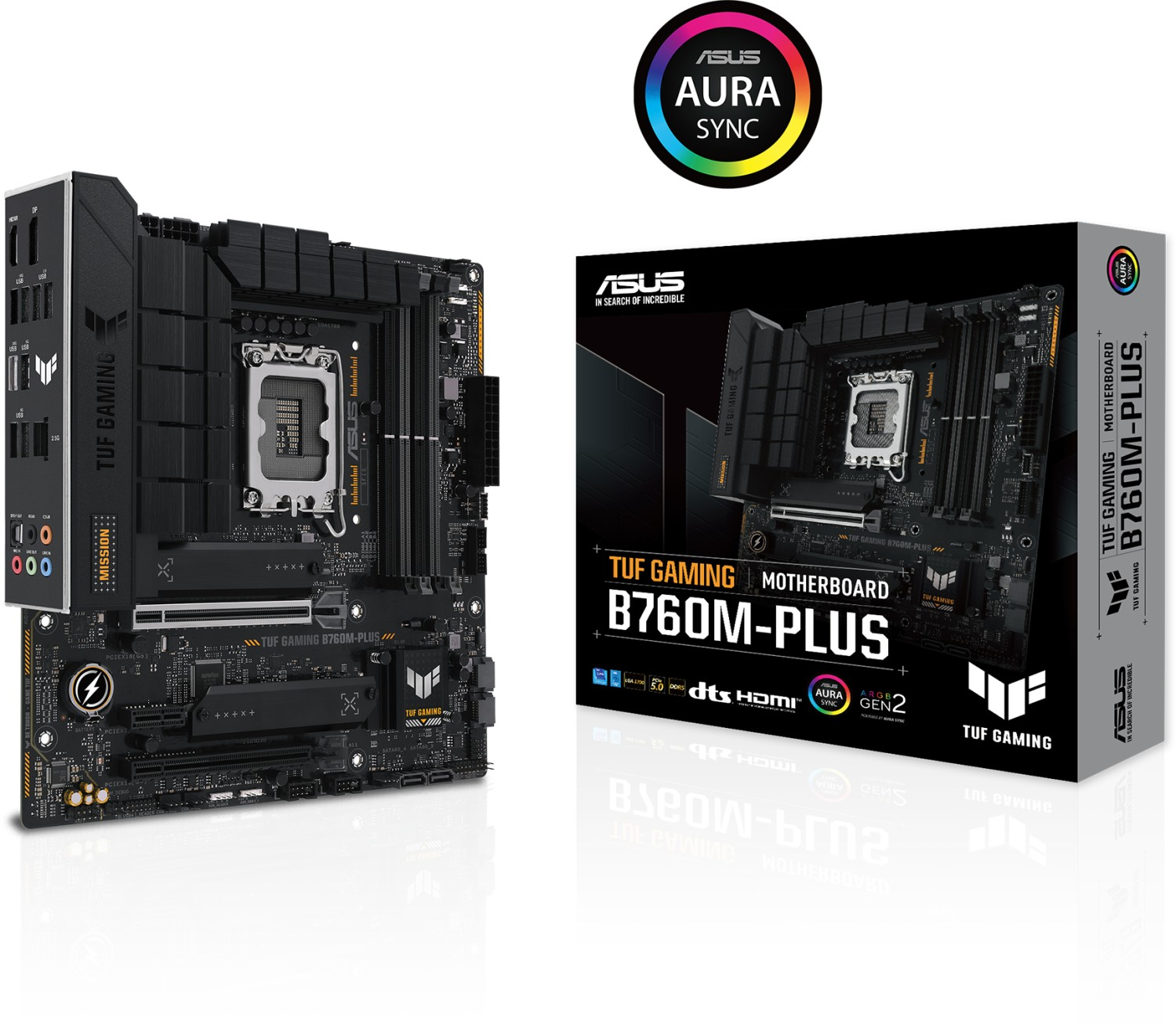

ASUS TUF GAMING B760M-PLUS, DDR5, SATA3, USB3.2Gen2x2, DP, LGA1700 mATX

PODNOŽJE: INTEL LGA 1700
ZA PROCESORJE: 13th/12th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: mATX format 24.4 cm x 24.4 cm
VEZNI ČIP: INTEL B760
POMNILNIK:
4 x DDR5 DIMM ECC/non-ECC 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz) do skupno 192GB kapacitete, dual channel in XMP OptiMem II podpora
GRAFIKA: DA - preko CPU
RAID: RAID 0, RAID 1, RAID 5, and RAID 10
RAZŠIRITVENE REŽE:
1 x PCIe 5.0 x16 slot
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slots
MREŽNA KARTICA: Realtek 2.5GbE LAN chip TUF LANGuard
ZVOČNA KARTICA: Realtek 7.1 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
DODATNO:

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

Spletna stran proizvajalca: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b760m-plus/
